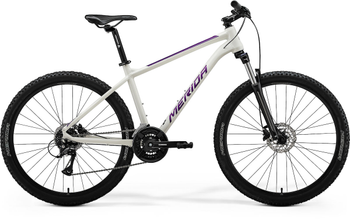

BIG.SEVEN 20 IV1 weiß/purple, MERIDA Größe: M, Farbe: weiß/purple, VE: 1
Artikelnummer 8824619500
Leider AusverkauftAluminium hardtail, sporting easy to accelerate and nimble 27.5" wheels, our more comfort-focused geometry, 100 mm of front suspension and a double chainset setup, giving you plenty of gears to choose from and lots of comfort and control during your next off-road adventure.
UVP 749,00 €
499,10 € *
Sie haben Fragen
zum Produkt?
Schreiben Sie uns oder rufen Sie uns an.
Unsere Experten helfen Ihnen gerne.
Double chainring equipped entry-level 27.5" aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.
The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. They symbolise the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
* Double butted aluminium frame with 27.5" wheels
* Less aggressive and more upright geometry for maximum control and comfort
* SR Suntour 100 mm travel suspension fork with lockout
* Shimano 8-speed drivetrain with double chainring setup
* Hydraulic disc brakes
* Internal cable routing
Rahmenset
- Rahmen: * 100mm suspension travel * material: aluminium * 27.5x2.25" max. wheelsize * 135x9mm axle standard * BSA bottom bracket standard
- Sattelstützklemme: MERIDA COMP QR
Fahrwerk
- Gabel: SR Suntour XCT30 HLO * Coil * 100mm suspension travel * Lockout * 27.5x2.25" max. wheelsize
Bremsen
- Bremse vorne: Tektro M275 * hydraulic brake Shimano RT10 * 160 mm
- Bremse hinten: Tektro M275 * hydraulic brake Shimano RT10 * 160 mm
Antrieb
- Innenlager: Shimano BB-UN101 73-123
- Kassette: Sunrace CSM668 * 11-32 teeth * 8 speed
- Kette: KMC Z8.1
- Kurbelgarnitur: Shimano TY301 * 42-34-24 teeth * MAT Aluminium * 170 mm-XS/S, 175 mm-M/L
- Schalthebel: Shimano ST-EF505 Shimano ST-EF505
- Schaltwerk: Shimano RD-M310
- Umwerfer: Shimano FD-TY600
Accessoires
- Klingel: YWS-Alloy
- Pedals: VP VPE-891
Cockpit
- Steuersatz: MERIDA M2345
- Lenker: MERIDA CC * material: aluminium * 690mm width * 15mm rise
- Lenkergriffe: MERIDA EC
- Vorbau: MERIDA CC 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL 70 mm-XS/S, 80 mm-M, 90 mm-L
- Sattelstütze: MERIDA CC * 30.9mm diameter * 15mm setback * material: aluminium
- Sattel: MERIDA Sport comfort
Laufräder
- Vorderradnabe: Shimano TX505 * 100x9mm width front hub * 32 spoke holes * Centerlock
- Hinterradnabe: Shimano TX505 * 135x9mm width rear hub * 32 spoke holes * Centerlock
- Speichen: Black steel
- Felgen: MERIDA CC * 17mm inner width * material: aluminium
- Schläuche: 27.5*2.2 A.V
- Vorderreifen: MERIDA K1080 * 27.5x2.2" * wire
- Hinterreifen: MERIDA K1080 * 27.5x2.2" * wire
