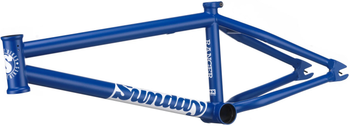

Ranger-18 Rahmen blau
- 100% 4130 Chromoly Frame- Proven pro-level geometry adjusted for 18'' wheels
- Integrated seat clamp
- Butted Seat Tube & Miter Cut Top Tube: A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched'' top tube at this critical junction.
- Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
- Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
- Removable Brake Hardware: Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they're not
- Top Tube Lengths: 18"
- Head Tube Angle: 75°
- Seat Tube Angle: 71°
- Chainstay Length: 11.70-12''
- Bottom Bracket Height: 10.5''
- Standover: 7.7''
- Tire Clearance: 2.3''
- Head Tube Length: 4.4"
