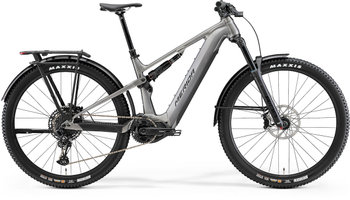

eONE-FORTY 675 EQ IV1 gunmetal/schwarz, MERIDA Größe: XL (45), Farbe: gunmetal/schwarz, VE: 1 Stk.
Artikelnummer 8824216300
BESTELLBAR, VERSANDBEREIT IN 2-4 WERKTAGENTough enough for the trail, ready for the city. A trail eMTB frame, powerful EP8 motor and 750 Wh battery combined with city-spec guards, rack and lights as standard create a whole new animal.
UVP 5.799,00 €
4.929,10 € *
Sie haben Fragen
zum Produkt?
Schreiben Sie uns oder rufen Sie uns an.
Unsere Experten helfen Ihnen gerne.
Tough enough for the trail, ready for the city. By combining our aluminium full-suspension trail eMTB with city-ready equipment including mudguards, lights and rack, we've created an entirely new urban animal. A refined Shimano EP8 motor and 750 Wh battery will keep powering you on to new places, while quality Suntour suspension deals with everything from off-road trails to city potholes.
The eONE-FORTY might be the little sibling to our multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630 Wh or 750 Wh battery (model specific) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the EQ model that comes fully equipped with mudguards, rack, lights and kickstand so it can tackle the mean streets as well as muddy trails.
* Tough all-aluminium chassis with integrated 750 Wh battery
* Powerful Shimano EP8 drive unit
* Mixed wheel size setup with 140/130 mm travel split
* Quality Suntour suspension
* Smooth 11-speed Shimano drivetrain and powerful four-piston brakes
* Fully equipped with mudguards, rack, lights and kickstand
Rahmenset
- Rahmen: * material: aluminium * 133mm suspension travel * 27.5x2.8" max. wheelsize * 148x12mm axle standard * intube * 750 Wh
- Sattelstützklemme: MERIDA EXPERT
Fahrwerk
- Dämpfer: Rock Shox Super Deluxe Select
- Gabel: SR Suntour AION X 36 Boost * Air * 150mm suspension travel * Tapered * 44mm fork offset * 29x2.5" max wheelsize
Bremsen
- Bremse vorne: Sram CenterLine * 200mm
- Bremse hinten: Sram DB8 * 4 piston Sram CenterLine * 200mm
Antrieb
- Kassette: Sram PG-1210 Eagle * 10-50 teeth * 12 speed
- Kette: Sram SX Eagle
- Kettenblätter: FSA 1x Steel Megatooth Chainring * 36 teeth
- Kurbelgarnitur: Shimano FC-EN600 * 165mm
- Schalthebel: Limotec RM10 (For SRAM MMX) * Maxxis Rekon Sram NX Eagle 12
- Schaltwerk: Sram NX Eagle
Accessoires
- Gepäckträger: Massload MA 013
- Klingel: Alloy
- Parkstütze: Atranvelo ED-100-PC
- Pedals: VP VPE-527
- Rücklicht: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
- Scheinwerfer: Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount
- Schutzbleche: Winning EOF-204
Cockpit
- Steuersatz: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
- Lenker: MERIDA EXPERT eTR * 780mm width * 20mm rise
- Lenkergriffe: MERIDA EXPERT EC
- Vorbau: MERIDA EXPERT eTR II 40 mm all sizes 40 mm all sizes
- Sattelstütze: MERIDA TEAM TR * 34.9mm diameter * 0mm setback * all sizes 30-230mm travel seatpost
- Sattel: MERIDA EXPERT SL * V-mount * incl. MERIDA minitool
Laufräder
- Vorderradnabe: Novatec SL-TEAM D041SB-B15 * 110x15mm width front hub * 32 spoke holes * 6 bolt
- Hinterradnabe: Novatec SL-TEAM D462SB-S3S-B12-11S * 148x12mm width rear hub * 32 spoke holes * 6 bolt
- Speichen: Black stainless
- Felgen: MERIDA EXPERT TR II * 110x15mm width front hub * 148x12mm width rear hub * 28mm inner width * material: aluminium * Tubeless ready (tubeless tape and valves not included) * 29"
- Schläuche: Front Lite-29x2.2-2.5, Rear Lite-27.5x2.5-3.0
- Vorderreifen: Maxxis Rekon * 29x2.4" * fold * 3C EXO MaxxTerra
- Hinterreifen: Maxxis Rekon * 29x2.4" * fold * TR 3C EXO MaxxTerra
E-Bike
- Motor: Shimano EP801 * 85Nm SM-DC-EP801
- Display: Shimano SC-EN600
Gewicht
Rahmengröße
| Art.-ID | 21411416 |
| Zustand | Neu |
| Modell | 8824216300 |
| Hersteller | Merida |
| Inhalt | 1 Stück |
| Gewicht | 0 g |
| Netto-Gewicht | 0 g |
| Maße | 0×0×0 mm |
