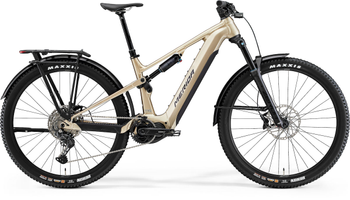

eONE-FORTY 475 EQ IV1 high-cream/schwarz, MERIDA Größe: XL (45), Farbe: high-cream/schwarz, VE: 1 Stk.
Artikelnummer 8824213700
BESTELLBAR, VERSANDBEREIT IN 2-4 WERKTAGENThe ultimate crossover. Designed for the trail but prepared for the city, with a full-suspension eMTB chassis with powerful EP8 motor and integrated battery, plus guards, rack, lights and kickstand.
UVP 5.449,00 €
4.629,10 € *
Sie haben Fragen
zum Produkt?
Schreiben Sie uns oder rufen Sie uns an.
Unsere Experten helfen Ihnen gerne.
It's the ultimate crossover. The eONE-FORTY 475 EQ can deal with rugged terrain, whether it's potholed city streets or weekend rides in the dirt. The powerful Shimano EP8 drive unit is paired to a sleekly integrated high-capacity 750 Wh battery in our tough all-aluminium frame. Confident handling is assured with our mixed wheel size setup, trail geometry and smooth suspension, so you'll be able to handle any obstacle. Add in the smooth shifting Shimano drivetrain and powerful four-piston brakes and you've got a mix of convenience, control and capability that's hard to beat.
The eONE-FORTY might be the little sibling to our multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630 Wh or 750 Wh battery (model specific) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the EQ models that come fully equipped with mudguards, rack, lights and kickstand so it can tackle the mean streets as well as muddy trails.
* Tough all-aluminium chassis with integrated 750 Wh battery
* Powerful Shimano EP8 drive unit
* Mixed wheel size setup with 140/130 mm travel split
* Quality Suntour suspension
* Smooth Shimano drivetrain and powerful four-piston brakes
* Fully equipped with mudguards, rack, lights and kickstand
Rahmenset
- Rahmen: * material: aluminium * 133mm suspension travel * 27.5x2.8" max. wheelsize * 148x12mm axle standard * intube
- Sattelstützklemme: MERIDA EXPERT
Fahrwerk
- Dämpfer: SR Suntour Edge Plus * platform
- Gabel: SR Suntour Zeron 36 X * platform
Bremsen
- Bremse vorne: Shimano MT420 * 4 piston Tektro TR203-45 * 203 mm
- Bremse hinten: Shimano MT420 * 4 piston Tektro TR203-45 * 203 mm
Antrieb
- Kassette: Shimano LG400 * 11-48 teeth * 10 speed
- Kette: Shimano LG500
- Kettenblätter: FSA 1x Steel Megatooth Chainring * 36 teeth
- Kurbelgarnitur: Shimano FC-EN600 * 165mm
- Schalthebel: Shimano SL -MT500-IL Shimano CUES U6000
- Schaltwerk: Shimano CUES U6000 * GS
Accessoires
- Gepäckträger: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
- Klingel: Alloy
- Parkstütze: Atranvelo ED-100-PC
- Pedals: VP VPE-527
- Rücklicht: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
- Scheinwerfer: Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount
- Schutzbleche: Winning EOF-204
Cockpit
- Steuersatz: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
- Lenker: MERIDA EXPERT eTR * 780mm width * 20mm rise
- Lenkergriffe: MERIDA EXPERT EC
- Vorbau: MERIDA EXPERT eTR II 40 mm all sizes 40 mm all sizes
- Sattelstütze: MERIDA EXPERT TR II * 34.9mm diameter * 0mm setback * XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost
- Sattel: MERIDA EXPERT SL * V-mount * incl. MERIDA minitool
Laufräder
- Vorderradnabe: Shimano TC500-B * 110x15mm width front hub * 32 spoke holes * Centerlock
- Hinterradnabe: Shimano TC500-HM-B * 148x12mm width rear hub * 32 spoke holes * Centerlock
- Speichen: Black stainless
- Felgen: MERIDA COMP TR II * 28mm inner width * material: aluminium * Tubeless ready (tubeless tape and valves not included)
- Schläuche: Front Lite-29x2.2-2.5, Rear Lite-27.5x2.5-3.0
- Vorderreifen: Maxxis Rekon * 29x2.4" * fold * 3C EXO MaxxTerra
- Hinterreifen: Maxxis Rekon * 29x2.4" * fold * 3C EXO MaxxTerra
E-Bike
- Motor: Shimano EP801 * 85Nm SM-DC-EP801
- Display: Shimano SC-EN600
Gewicht
Rahmengröße
| Art.-ID | 21411411 |
| Zustand | Neu |
| Modell | 8824213700 |
| Hersteller | Merida |
| Inhalt | 1 Stück |
| Gewicht | 0 g |
| Netto-Gewicht | 0 g |
| Maße | 0×0×0 mm |
